STRADA SL

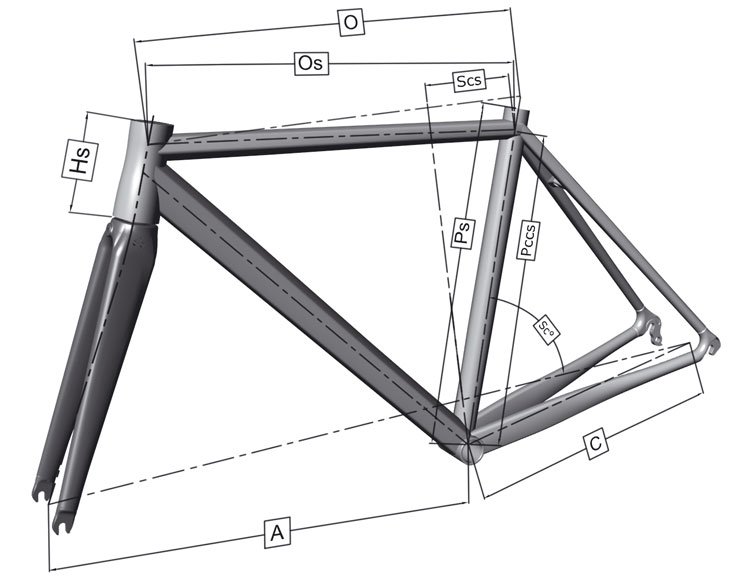

Size Size Sc° Seat angle
Pccs Seat tube length (centre to centre) Scs Seat cluster offset
Ps Seat tube length (centre to top) C Chainstay length
P Effective seat tube length A Front centre
Os Top tube length Hs Tube length
O Top tube length (horizontal)
Size P O Pccs Scs Sc° A C Hs
49 490 518 470 121 75° 585 400 80
50 500 523 480 125 75° 587 401 83
51 510 527 490 128 74.8° 587 402 91
52 520 530 500 133 74.6° 588 403 99
53 530 535 510 140 74.1° 589 404 108
54 540 540 520 143 74° 591 405 117
55 550 545 530 146 74° 594 406 126
56 560 550 540 153 74° 595 408 135
57 570 557 550 161 73.5° 595 410 143
58 580 565 560 165 73° 597 411 151
59 590 572 570 169 73° 600 412 160
60 600 580 570 169 72.75° 608 413 162
61 610 586 583 173 72.75° 612 413 171
62 620 590 583 173 72.75° 615 414 182
63 630 594 586 174 72.75° 618 415 182
64 640 597 595 177 72.75° 622 416 192
65 650 600 605 180 72.75° 624 416 203
