ACE

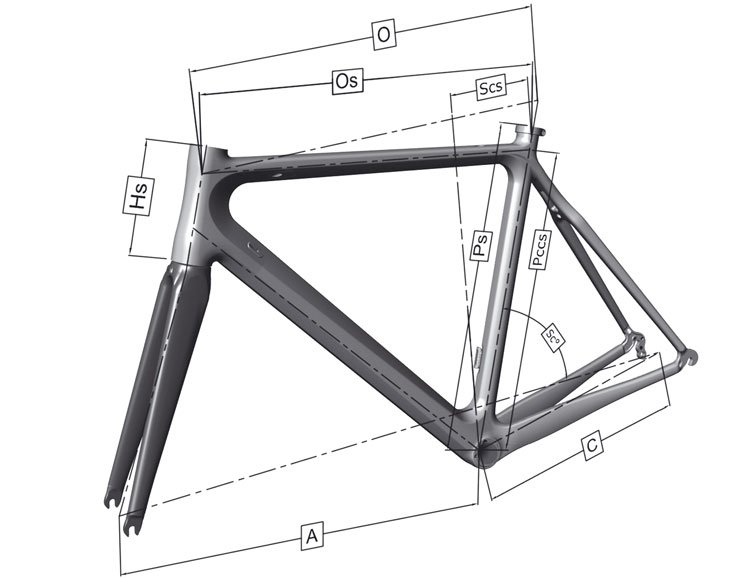

Size Size Sc° Seat angle
Pccs Seat tube length (centre to centre) Scs Seat cluster offset
Ps Seat tube length (centre to top) C Chainstay length
P Effective seat tube length A Front centre
Os Top tube length Hs Tube length
O Top tube length (horizontal)
Size Ps Os Pccs Scs Sc° A C Hs P O Stack Reach
42 420 491 390 99 75.60° 580 398 124 510 504 519 371
45 450 503 420 111 75.10° 582 399 127 515 515 524 376
48 480 515 450 121 74.50° 584 402 130 520 527 530 381
50 500 526 470 131 74° 589 405 146 540 537 546 382
52 520 536 490 141 73.57° 593 408 166 560 550 567 382
54 540 550 515 151 72.83° 596 411 181 580 565 582 385
56 560 565 525 156 72.72° 606 412 190 600 580 592 397
58 580 577 540 160 72.77° 615 414 206 620 590 607 401
