World Cup

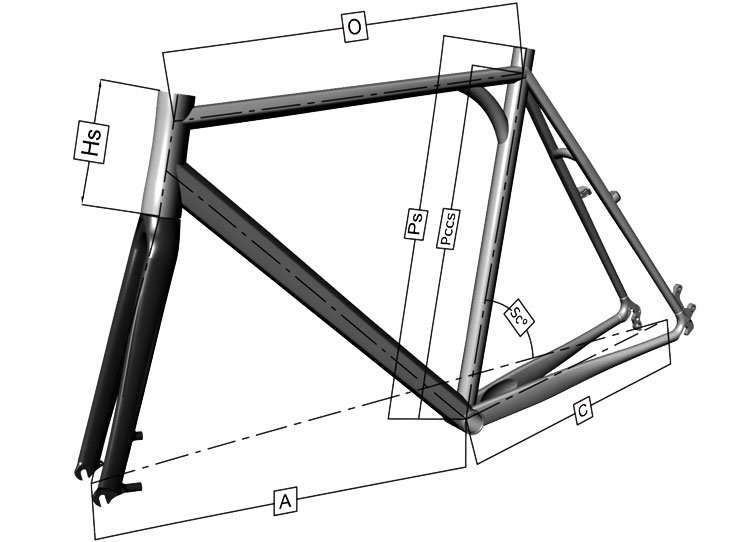

| Size | Size | Sc° | Seat angle |
| Pccs | Seat tube length (centre to centre) | Scs | Seat cluster offset |
| Ps | Seat tube length (centre to top) | C | Chainstay length |
| P | Effective seat tube length | A | Front centre |
| Os | Top tube length | Hs | Tube length |
| O | Top tube length (horizontal) |
| Size | P | O | Pccs | Scs | Sc° | A | C | Hs |
|---|---|---|---|---|---|---|---|---|
| 50 | 500 | 520 | 480 | 120 | 75.52° | 588 | 418 | 108 |
| 52 | 520 | 527 | 500 | 129 | 75.05° | 592 | 420 | 110 |
| 54 | 540 | 537 | 520 | 138 | 74.61° | 595 | 420 | 127 |
| 56 | 560 | 550 | 540 | 148 | 74.09° | 598 | 422 | 143 |
| 58 | 580 | 565 | 560 | 160 | 73.40° | 600 | 427 | 159 |
| 60 | 600 | 580 | 570 | 164 | 73.30° | 602 | 430 | 168 |
